CXK SHIELD TYPE

CAR MILLING COMPOUND LATHE

ADVANTAGE

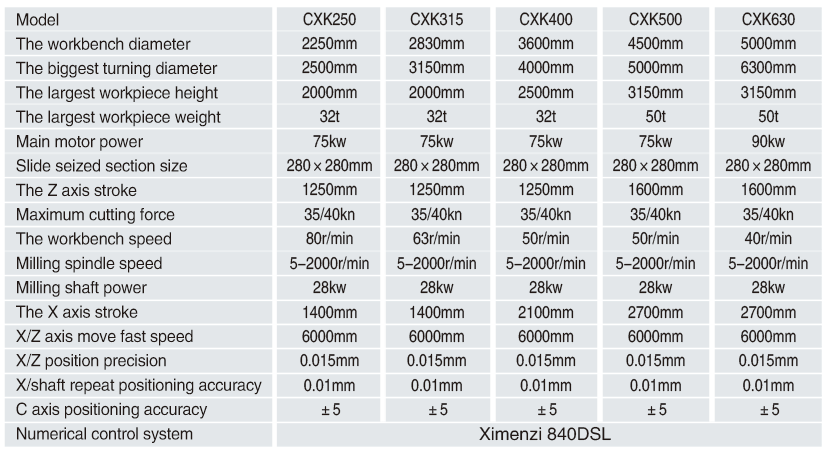

TECHNICAL PARAMETER

TECHNICAL INTRODUTION

This product completely independent design and development, after nearly 10 years of experience in car milling compound machine tool development and research, the product technology mature, reliable in performance. A clamping can complete vehicles, milling, boring, drilling, tapping and reaming process. With grinding wheel and grinding, supporting a milling head can complete profile processing, do double pendulum head five-axis machining can be realized.
Low knife library: 6 to 24 the cutter tool and double double servo drive ATC knife library.
Low broach mechanism: equipped with milling spindle broach mechanism, adopt BT50 standard milling cutter handle.
Adopt double column gantry structure, stable structure, strong rigidity.
Low table adopt pure hydrostatic bearing hydrostatic guideway, workpiece carrying capacity is strong.
Low C drive shaft with two independent type C shaft gear box, electronic gear backlash structure, combined with the independent development of double reading head C axis position detection technology, makes the C axis positioning accuracy of plus or minus arc seconds.
Low features all adopt international top brands.
Low standard Siemens 840 d nc system.

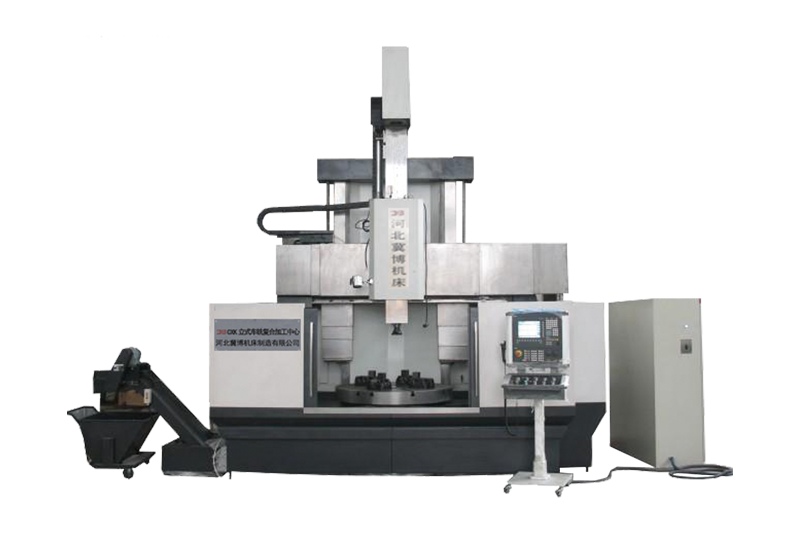

PRODUCT DISPLAY
